Smart Socket ®
Single D Series

This is the Smart Socket you need if your installation requires connectors for control, data or audio. Smart Socket kits are shipped complete with all the necessary screws and full fitting instructions.

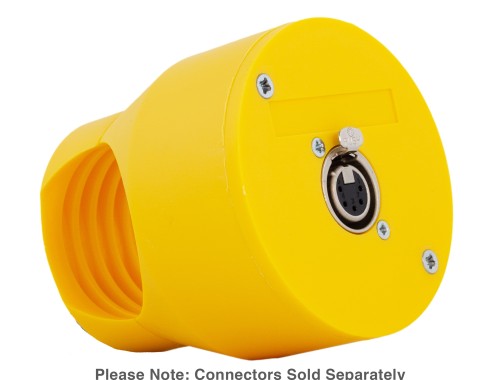

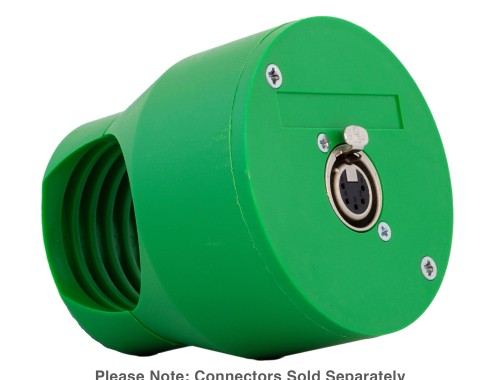

Please note that connectors need to be purchased separately.

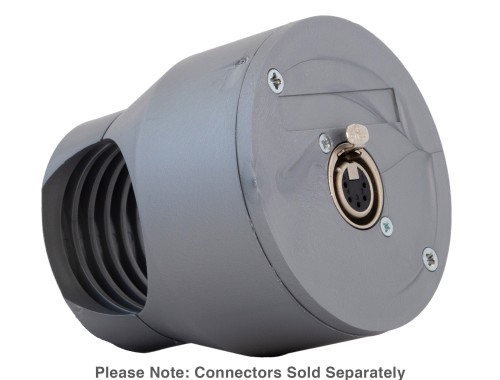

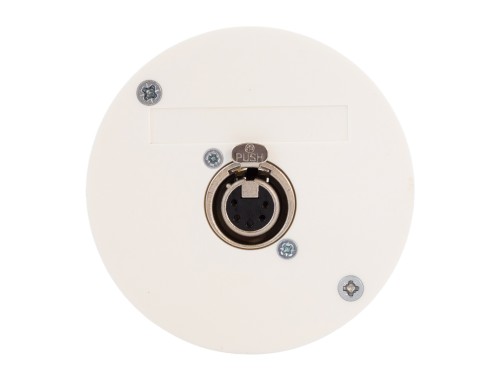

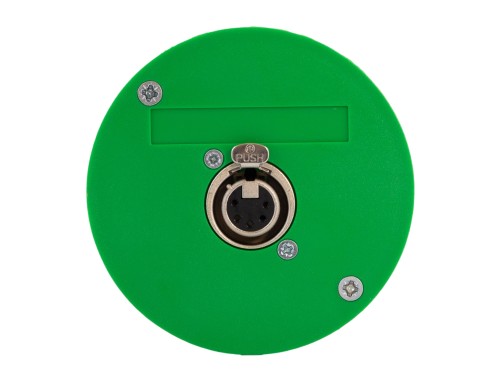

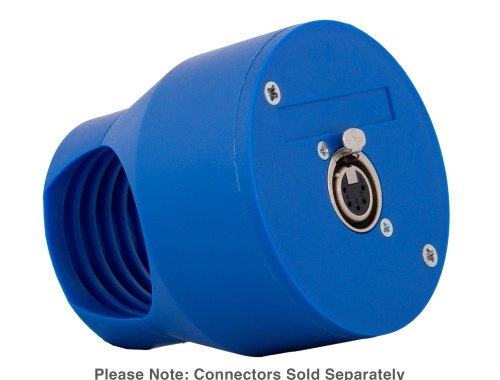

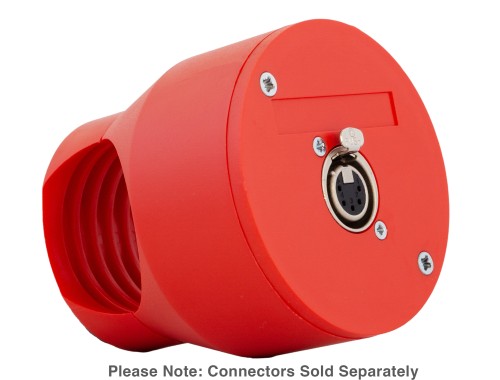

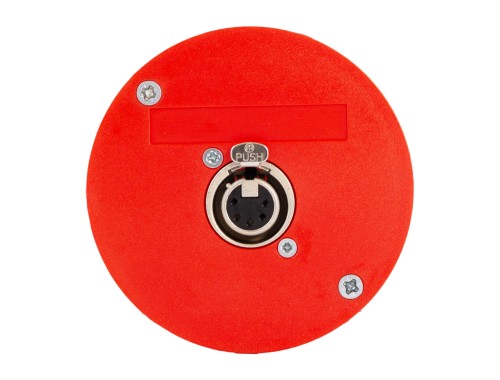

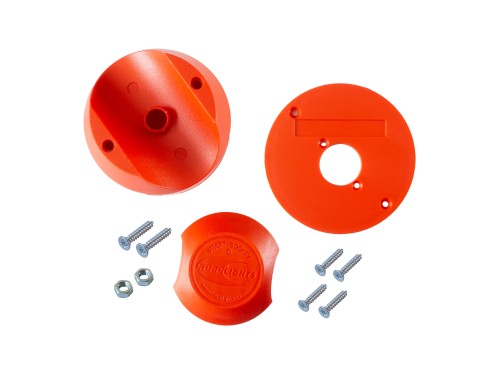

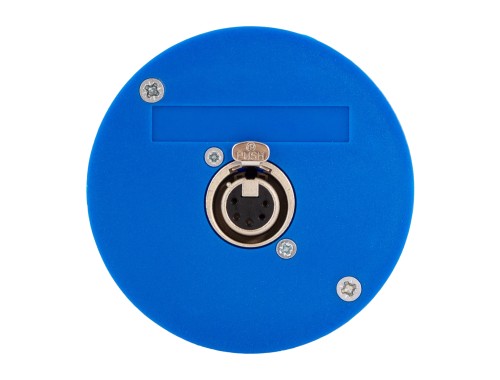

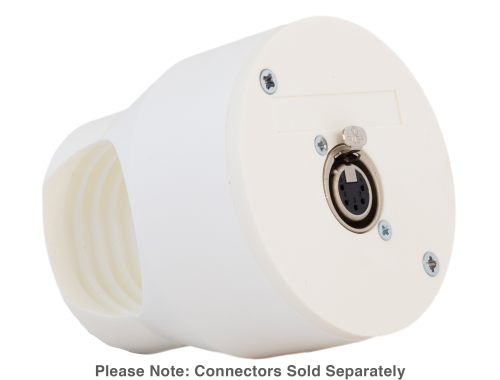

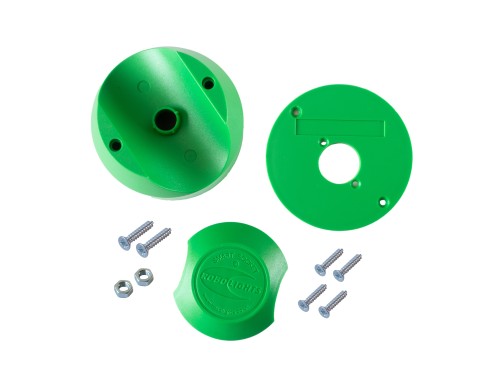

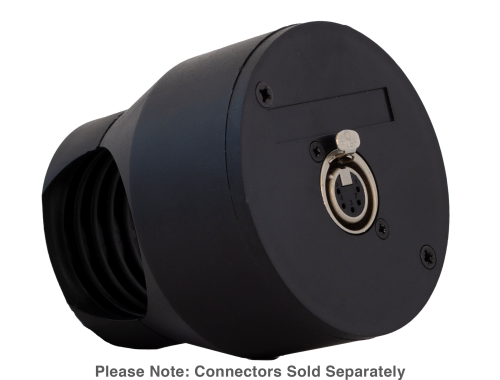

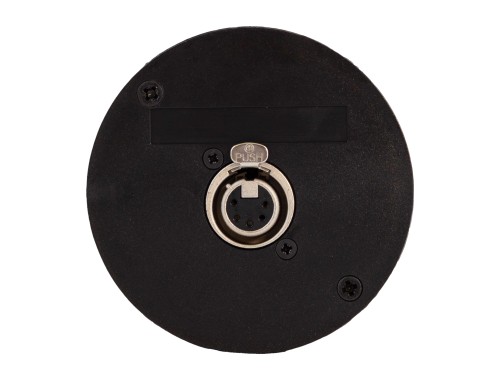

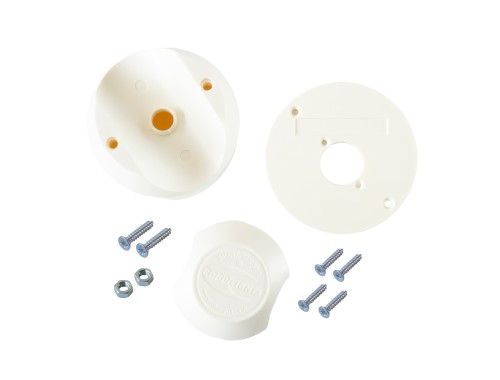

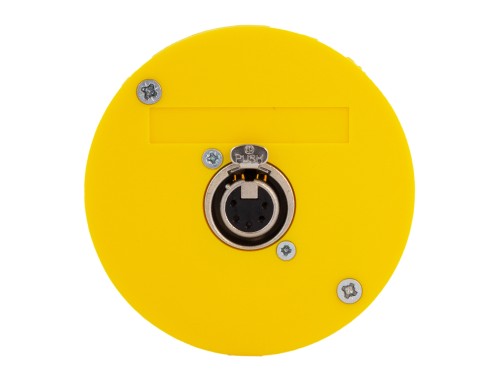

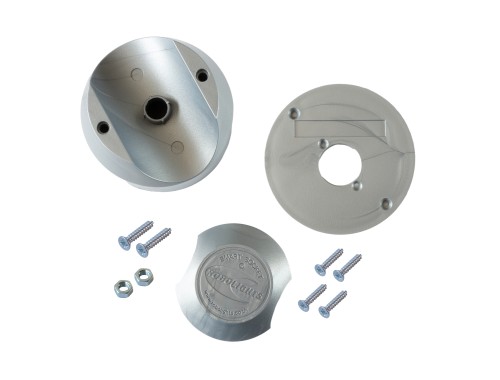

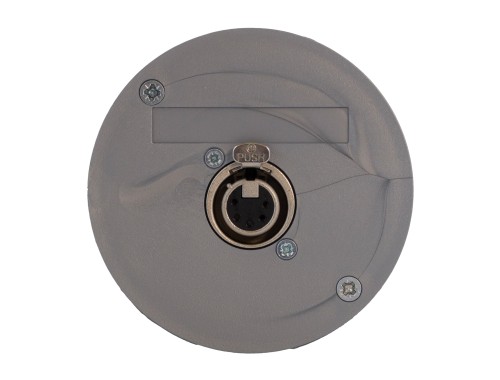

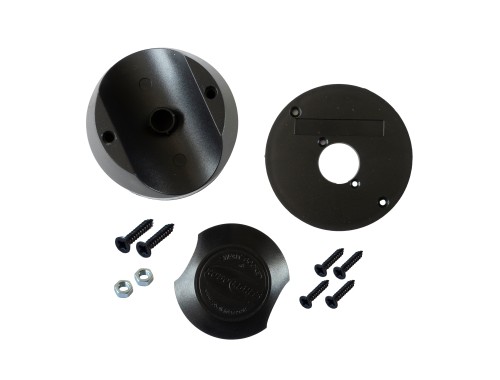

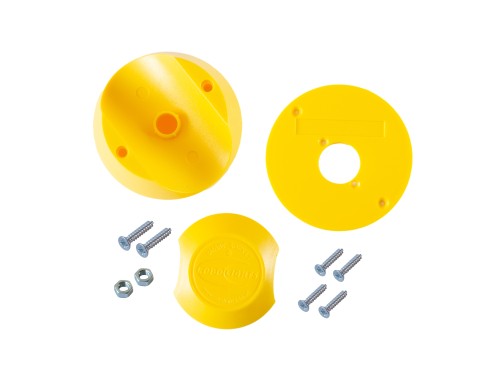

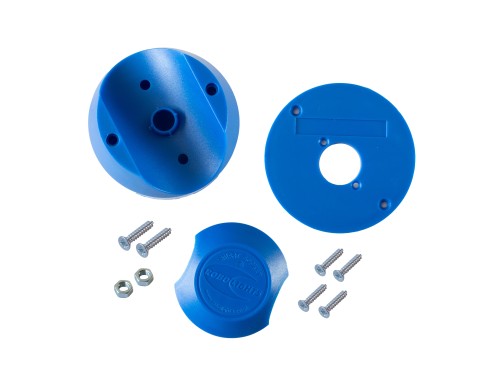

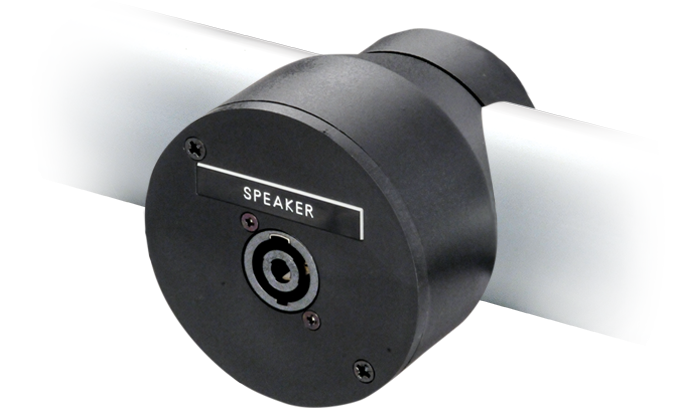

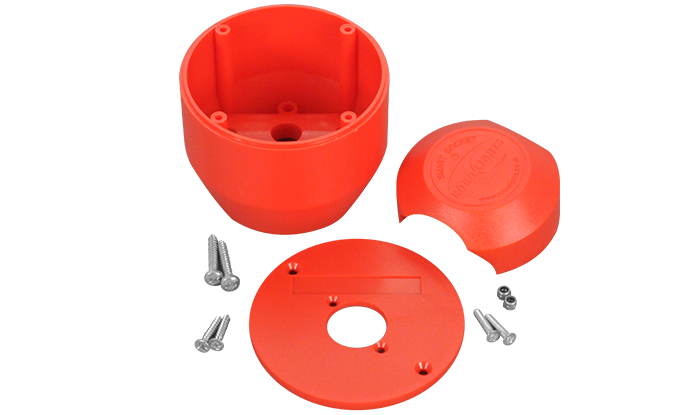

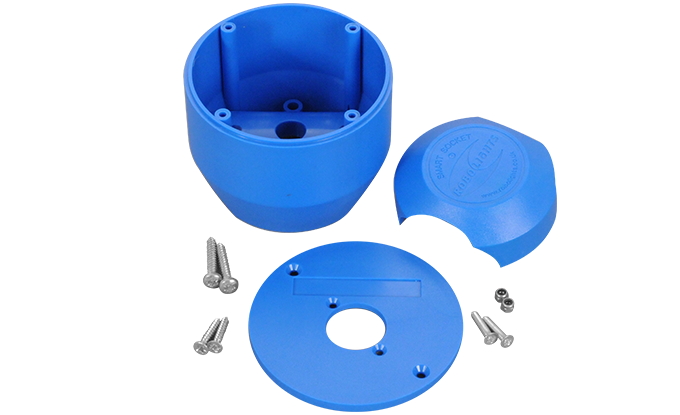

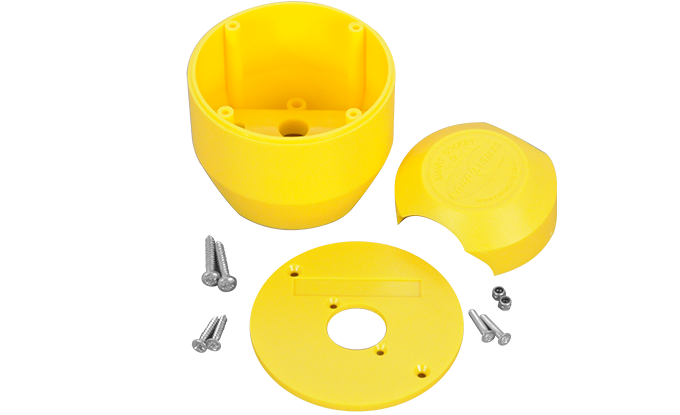

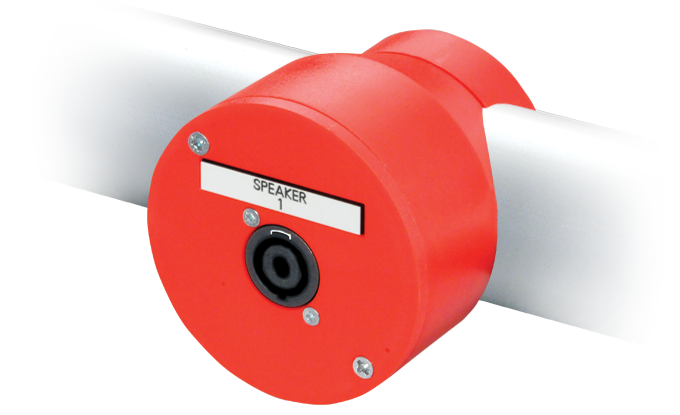

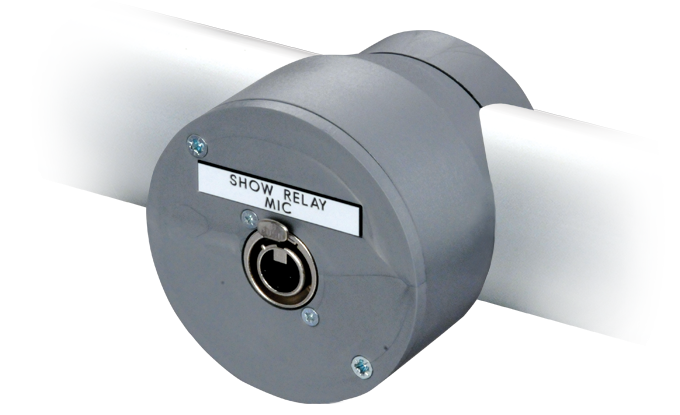

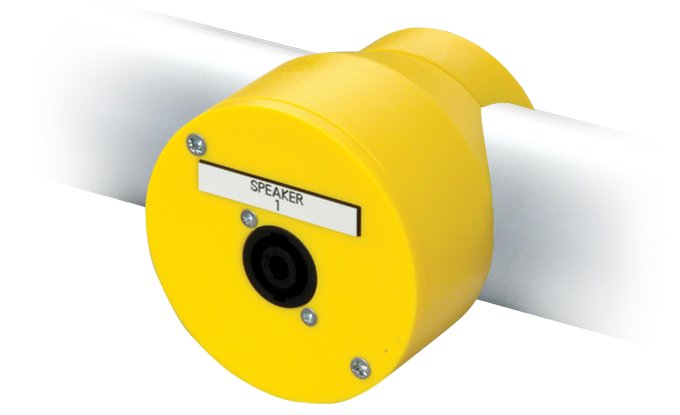

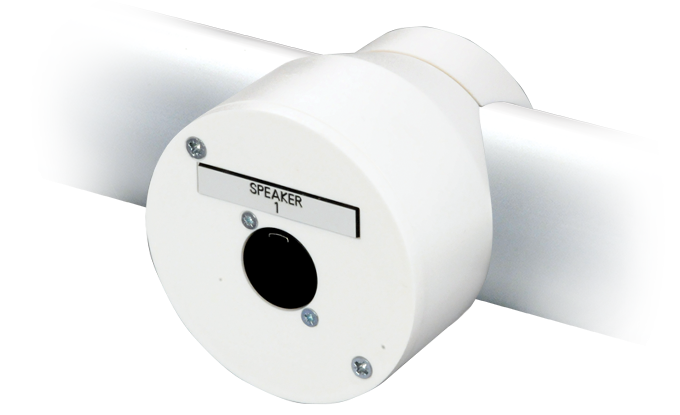

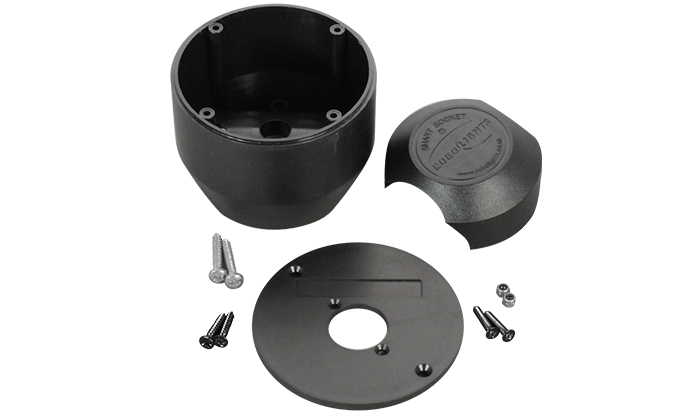

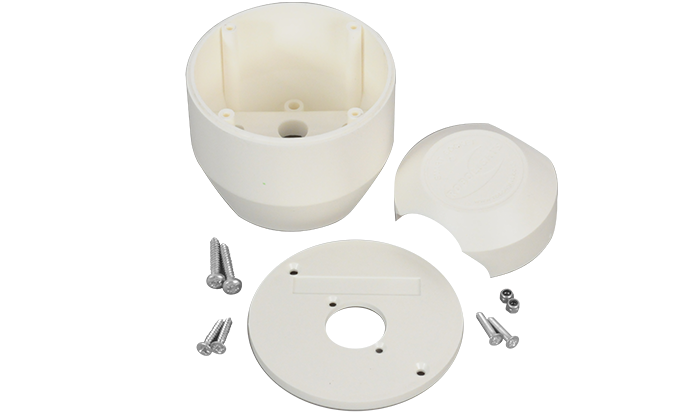

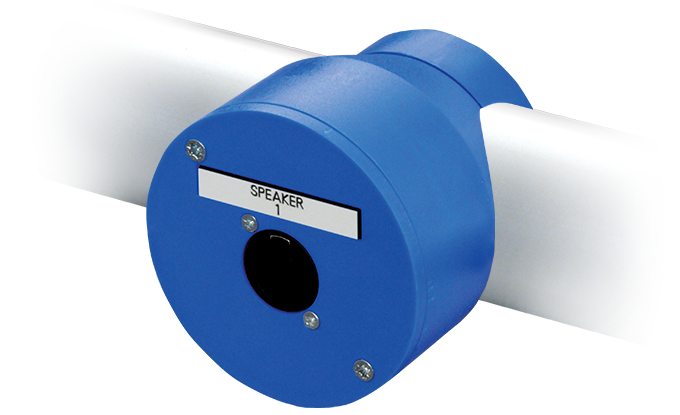

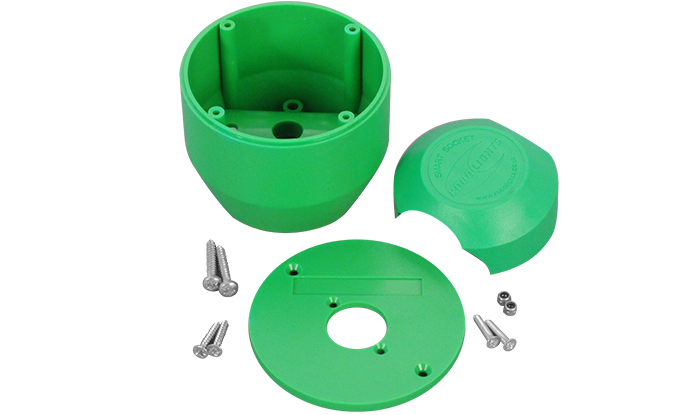

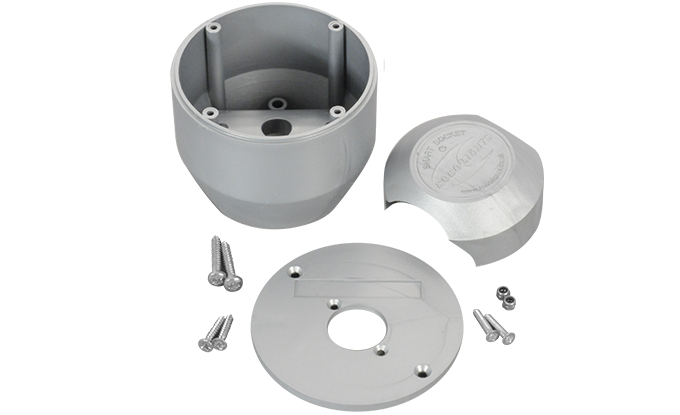

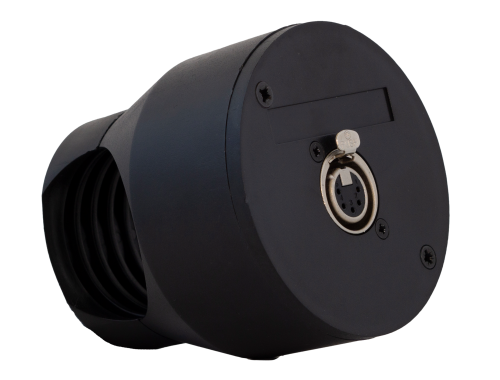

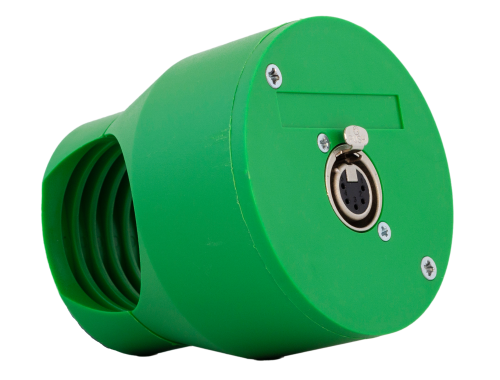

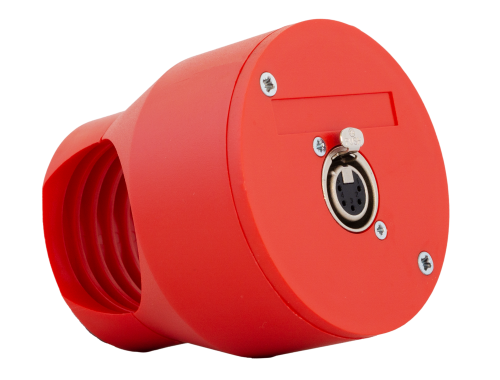

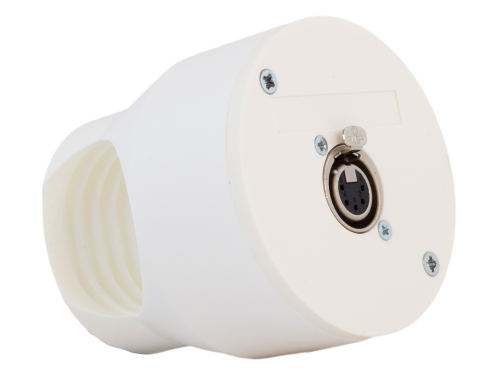

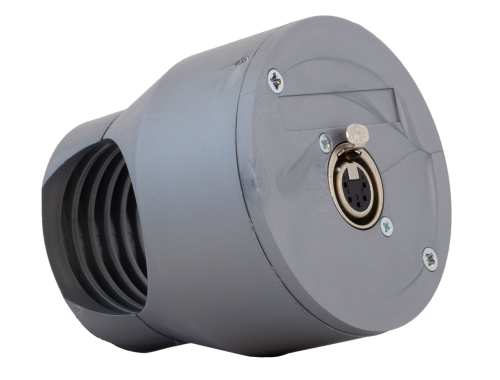

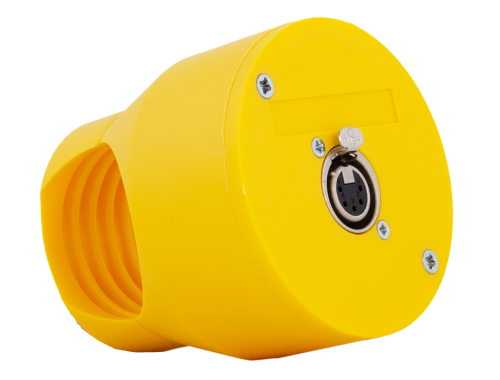

This Smart Socket kit includes a front lid that takes a single Neutrik D series connector or equivalent. Typical applications are for the provision of control data outlets on a lighting bar using 3 or 5 pin XLR or CAT5/6 Ethernet connectors. Alternatively, 3 pin XLR and Speakon connectors can be fitted to provide audio inputs & outputs. When using this Smart Socket, be sure to check that there is enough space inside the Smart Socket for the connector you are going to use. There are many different D series connectors available and thier depths do vary. All Smart Sockets are injection moulded in tough, resiliant ABS and comprise of 3 parts, the body, lid and clamp. Kits are shipped with all the necessary screws to assemble them along with full fitting instructions. Smart Sockets are designed for use with standard, 48.3 mm outside diameter aluminium scaffold tubing; to fit them you only need to drill a single 16 mm hole in one wall of the tube. Then, simply press the Smart Socket into place and tighten the 2 self tapping screws; you can then install the wiring for your lighting bar.
